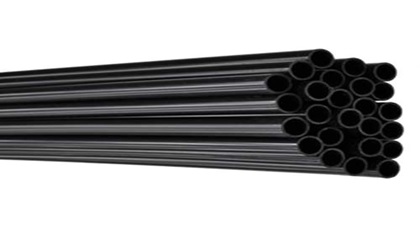

A conduit pipe is a type of piping used in electrical installations to protect and route electrical wiring. It serves several important functions in maintaining a safe and organized electrical system. Here’s a detailed overview:

Types of Conduit Pipes

1. Rigid PVC Conduit:

   • Material: Made from polyvinyl chloride (PVC), which is a durable and lightweight plastic.
   • Features: Rigid and strong, providing excellent protection against physical damage.
   • Applications: Commonly used for both residential and commercial installations, especially in outdoor or underground settings. It’s also resistant to moisture and chemicals.

2. Flexible PVC Conduit:

   • Material: Also made from PVC but is designed to be more flexible than rigid conduit.
   • Features: Can bend and twist, allowing for easier installation around obstacles and in tight spaces.
   • Applications: Ideal for use in situations where rigid conduit cannot easily be installed, such as in tight bends or areas where flexibility is needed.

3. Electrical Metal Tubing (EMT):

   • Material: Made from thin-walled steel or aluminum.
   • Features: Provides a strong, metallic protection for wires. Generally used for indoor installations.
   • Applications: Often used in commercial and industrial settings due to its durability and strength.

4. Intermediate Metal Conduit (IMC):

   • Material: A thicker-walled metal conduit, usually steel.
   • Features: Offers more protection than EMT but is lighter and easier to handle than rigid metal conduit.
   • Applications: Used in environments where extra protection is needed, such as in industrial settings.

5. Rigid Metal Conduit (RMC):

   • Material: Made from heavy-duty steel or aluminum.
   • Features: Very strong and provides excellent protection against impact and other physical damage.
   • Applications: Suitable for outdoor and underground installations, and in environments where high durability is required.

6. Flexible Metal Conduit (FMC):

   • Material: Made from interlocking metal strips.
   • Features: Highly flexible, allowing for easy installation around obstacles.
   • Applications: Used in situations where conduit needs to bend and flex, such as in areas with frequent movement or vibration.

Benefits of Using Conduit Pipes

• Protection: Conduit pipes protect electrical wires from physical damage, moisture, and exposure to chemicals.
• Organization: They help organize and route wiring in a clean and structured manner.
• Safety: Conduit systems help prevent electrical hazards such as short circuits and electrical fires.
• Code Compliance: Many electrical codes require the use of conduit for certain types of installations to ensure safety and durability.

Installation Tips

• Cutting and Joining: Use appropriate tools for cutting and joining conduit pipes. Ensure that cuts are clean and fittings are securely attached.
• Bending: For flexible conduit, ensure bends are smooth to avoid damaging the wires inside.
• Support: Properly support and secure conduit pipes at regular intervals to prevent sagging and ensure stability.
